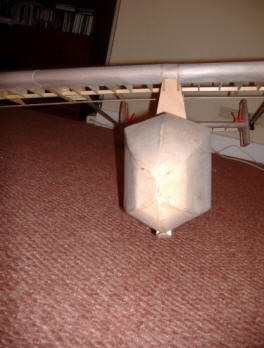

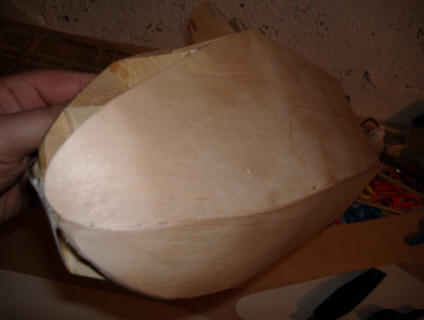

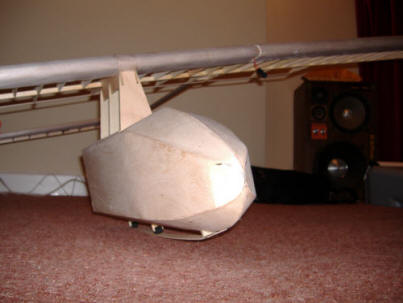

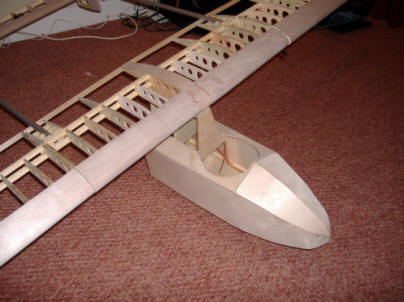

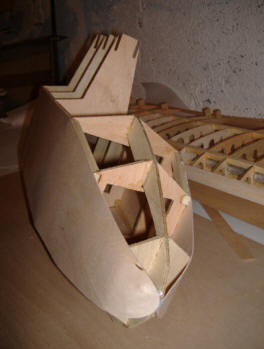

The sheeting is made with 0.8mm plywood. Fantastic material to work with !

Much easier than the balsa ! And the finishing is almost perfect !


For the tail section, nothing really complicated here. one servo for each rudder, and one for the elevator.

The elevator / rudders are made with 3mm plywood and 2mm balsa. All the sheeting is made with 0.4 mm plywood. Absolutely perfect !

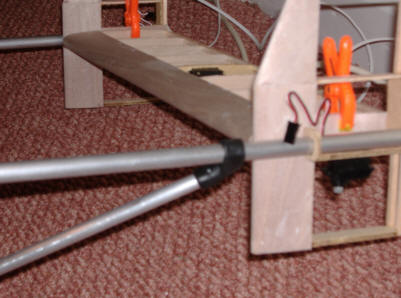

Note the tail Booms junction.. This is made using rubber junctions for kites. You just have to enlarge the holes to fit the tubes (12 and 10 mm in diameter). Almost like the real one !
